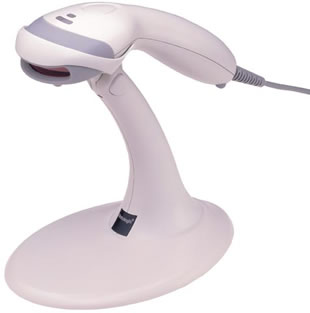

Metrologic’s MS9520 Voyager with a futuristic design and high-performance scanning system represents the best auto-triggered scanner value on the market.
Metrologic’s goal was to develop a hand-held scanner that was equally effective as a resentation device and would incorporated several innovative new features while making it durable enough to offer a five year warranty. Flash ROM upgrades, data editing utilities and user-replaceable cables lead the extensive features list of what has become the industries guide for measuring hand-held laser bar code scanners, MS9520 Voyager. Features
- Automatic trigger
- Decodes RSS-14, RSS Limited and RSS
Expanded bar codes
- User-replaceable, single cable interface
to host
- Adjustable stand
- Firmware updates via Flash ROM
- Custom edit the bar code data
- Easy programming using Windows®
software or bar codes
- Supports commonly used interfaces,
including Keyboard Wedge and USB
- OPOS and JPOS system compatible
|
 |
Flash ROM allows the firmware to be upgraded easily, and as software updates become available, each Voyager can be updated with all of the latest features utilizing an easy-to-use Windows®-based program. Using MetroSet2®’s data transmitting utility, users can custom-edit the bar code data to meet the requirements of the host system.
Voyager includes the ability to decode the emerging Reduced Space Symbology (RSS). Industries including supermarkets, pharmaceutical, and healthcare are beginning to utilize this new symbology. For those Voyager’s already deployed, an online Flash ROM upgrade is available at www.metrologic.com.
Specifications
| Light Source |
Visible Laser Diode |
| Laser Power |
0.96 mW |
| Depth of Scan Field |
0 mm - 203 mm (0” - 8”) for 0.33 mm (13 mil) bar codes |
| Width of Scan Field |
64 mm (2.5”) @ face; 249 mm (9.8”) @ 203 mm (8.0”) |
| Scan Speed |
72 +/- 2 scan lines per second |
| Scan Pattern |
Single scan line |
| Minimum Bar Width |
0.127 mm (5.0 mil) |
| Decode Capability |
Autodiscriminates all standard bar codes, including RSS |
| System Interfaces |
PC Keyboard Wedge, RS232, OCIA, Light Pen Emulation, Non-decode
Emulation, IBM 468X/469X, Stand Alone Keyboard, USB (low speed and
full speed) |
| Print Contrast |
35% min reflectance difference |
| No of Characters Read |
Up to 80 data characters |
| Roll, Pitch, Yaw |
42°, 68°, 52° |
| Beeper Operation |
7 tones or no beep |
| Indicators |
Green - laser on, ready to scan
Red - good read |
| Dimensions |
40(D) x 78(W) x 198(H) mm |
| Weight |
149 g |
| Termination |
10 position modular RJ45 connector |
| Cable |
Standard 2.7 m (9’) coiled; optional 2.1 m (7’) straight |
| Input Voltage |
5 VDC +/- 0.25 V |
| Power |
500 mW |
|
