Powerful hardware for a whole
new level of speed and versatility and Powerful essential software for the
ultimate in convenience and efficiency.
Brilliant 12.1-Inch Backlit TFT Colour LCD
The 16-bit XGA-resolution (1,024 x 768) LCD provides highend
graphics with exceptional clarity and wide viewing
angles. The analogue touch panel is equipped with
customised control settings to meet your needs.
Compact Flash Memory
The UP-X300 comes standard with a CompactFlash disk.
Contactless Clerk Key Option
Without the need for an electrical connection or insertion
into the POS, the Contactless Clerk Key minimises wear on
the POS. ID codes for individual clerks are encrypted for
security.

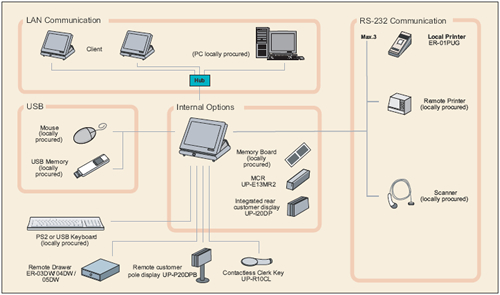

Increased System Extendibility
Making the most of your POS system, two standard USB
ports, three standard RS-232 ports, and Ethernet LAN port
give you the flexibility and range to build a customised
configuration.
Stylish and Durable Design
The sleek, modern, and low-profile cabinet design fits easily
into small spaces and blends smoothly into any hospitality
environment. The durable, spill-resistant surface safeguards
against spills and wet hands.
Optional Accessories
Customer displays, cash drawers, printers, a scanner, and an
integrated 3-track MCR (magnetic card reader) are all
available options to enhance your POS system.
Graphical User Interface (GUI) Touch Panel
The UP-X300 is equipped with a colour LCD touch panel. Operation can be performed by touching the screen that appears in the window of the display. The screen layout for registration and keys can be edited by your supplier, providing easy operation and flexible screen design.
Bill Separation
This function allows you to separate a group of orders into individual bills, simply by dragging and dropping the items. It also allows you to
automatically split bills by entering the number of persons or the payment amount.
|
Graphical Table Layout
The UP-X300 has a number of useful functions. You can design a restaurant table arrangement layout in the screen. The UP-X300 shows each table with an assigned number and displays information such as the number of seats, check number, guest counter. It is also possible to join tables, reserve tables, or prohibit the use of tables.
The UPX300 can also display the stage of service for tables. For example, the service stage of no orders, starters, main meals, desserts, payment, or cleaning can be viewed by different table colours. You can easily identify free tables or the current service stage of each table. In the graphical table layout screen, the convenient Table Alert function can initiate the flashing of tables that have not been served within a defined time interval.
The Automatic Table Search function finds tables for your guests or puts them on a waiting list until a table is available. As soon as a suitable table is free, a message is automatically displayed and guides you to open the table for the waiting guests. The graphical table layout also allows you to manage your service efficiently. You can define service sections and assign servers to each section. |
Combo Meal Function
The Combo Meal function lets you combine two or more menu items into a single stroke entry. For the associated PLUs, 3 types of prices (ordinary price, mark-up price, and discount price) can be programmed. The mark-up price is used for largeportion requests, and the discount price is used for small portions such as a child’s meal.
Condiment Entries The UP-X300 lets restaurants cater to the specific desires of
guests. For example, entering a menu-item PLU brings up a
message such as "How cooked?" and offers the key entry of
RARE, MED.RARE, and WELLDONE. The UP-X300’s condiment
table items can be entered for each menu item in one set or
by multiplication entry. So it's no problem if your guest wants
to decide on the set menu's dessert after eating the main meal.
The Later Dessert function allows you to order a non-specific
dessert for a table and enter the real dessert order later.
Promotion Functions
Various pre-programmed menu specials are provided to
support your promotion activities. Each promotion can be activated for a time interval, on valid weekdays, during a valid
month, and for a defined period.
- Automatic Modifier is used in pubs and restaurants for
quick and easy registration. Modifier items from a
promotion table are automatically registered instead of the
original item. You can also operate it manually via a
modifier key.
- Convenient Mix-and-Match functions are available for
selling bundled articles under special conditions such as a
special price, with a discount, or with an item free of
charge.
- Happy Hour Price allows you to register up to 20 different
event prices.
Repeat Round Entries
When the [REPEAT ROUND] key is touched, the PLUs are
reordered based on the last order. Those PLUs which have
been programmed as “repeat round: yes” can be repeated by
touching the [REPEAT ROUND] key once.
Mail Function
Messages can be sent from
the server to each clerk’s
machine. The received
message can be displayed
on the UP-X300 screen
and is also printable.
Employee / Server Function
The UP-X300 allows you to define the authorisation level of
employees/servers. For each staff member, individual functions
can be blocked, password protected, or compel a reason code
entry. By tracking the check in/out and break times of your
employees and providing Manager Edit, the UP-X300
establishes a sound base for workforce management. In a
multiple terminal environment, the Overlapped Clerk function
and Remote Sign Off feature allow you to easily serve your
customer at any terminal.
Specifications
| Operator Display |
|
12.1- inch TFT colour LCD (XGA) with backlight |
| Customer Display (Optional) |
|
Internal type or pole type
2 lines x 20 characters |
| Keyboard |
|
Analogue touch screen |
| Resolution |
|
1,024 x 768 dots |
| Drawer Ports |
|
2 ports |
| CompactFlash Memory |
|
128MB |
| Main Memory |
|
128MB standard |
| Ethernet LAN |
|
TCP/IP 10Base-T/100Base-TX |
| I/O Ports |
|
RS-232 x 3 |
| External Bus |
|
USB 2.0 x 2 |
| Departments |
|
Max. 99 |
| PLUs |
|
Max. 5000 |
| Employee Control |
|
Yes |
| Power Source |
|
240 volts AC, 50Hz |
| Power Consumption |
|
43 Watts (operating) |
| Dimensions (W x D x H) |
|
307 x 311 x 284 mm |
| Weight |
|
5.5 kg |
|
