A winning combination for any business.
Maximum performance in minimal space.

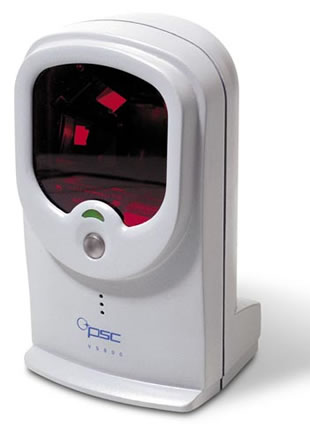

The VS800 compact scanner was designed specifically for point-of-sale
applications, where space is always at a premium and where scanner
performance is a critical component of efficiency and success.
The VS800 is the scanner to choose when you need reliable, full-functioned bar
code scanning without sacrificing counter space. With optional mounts, operators
can position the scanner at various angles to create a work environment that is
highly convenient, comfortable, and productive.
Features
- Standard POS interfaces - connectivity to most systems
- EAS deactivation option - one step scanning and EAS deactivation
- Multiple mounting options - positions scanner out of the way
- Programmable two step sleep mode and instant wake up - prolongs scanner life
Ideal for:
- Convenience Stores and Small Grocers
- Specialty Retailers and Pharmacies
- Area Registers in Discount Stores and Supermarkets
|
 |
A Lot Of Technology In Very Little Space
Using an advanced visible laser diode scanning system, the VS800 offers a large 8"/20cm depth of field and wide scan area for high performance, hands-free scanning. With PSC's patented Edge™ software and enhanced decoding capabilities, the VS800 is fast and delivers very high first pass read rates on a variety of bar codes, including labels that are long, truncated, partially obscured or otherwise difficult to read. And it reads codes as small as 5 mils. All this means faster checkout for retail customers.
This versatile scanner autodiscriminates UPC or EAN plus 5 industrial symbologies. And the single, dual, or triple interfaces and extensive programming options deliver the flexibility needed to quickly and easily integrate the VS800 into your POS system.
Advanced Design. Simple Operation. Built for Long Life and Fast ROI
Items are simply presented or swept by the VS800. The aggressive, omni-directional scan pattern virtually eliminates operator training and minimizes the need to adjust or orient individual items.
The specially designed case of the VS800 is built to survive drops from a counter top and keep right on scanning. And it resists chipping, stains and fading on its surface as well. With the VS800, maintenance is virtually non-existent. Simply clean the scanner and window periodically and enjoy its productivity year after year.
There's no need to make compromises between quality and affordability. This one scanner delivers it all, high-end performance, compact design, and enhanced reliability at a price you can afford. Specifications
| Dimensions |
150 x 86 x 76 mm |
| Weight |
363 g |
| Scan System |
Rotating polygon |
| Voltage |
Universal Wedge Version: 5.2 V to 14 VDC |
| Light Source |
650 nm Visible Laser Diode (VLD) |
| Scan Pattern |
Omnidirectional mode: 20 lines |
| Scan Angles |
5 |
| Scan Speed |
1,500 lines per second (lps) |
| Resolution |
5 mils/0.13mm |
| Interfaces |
RS232
IBM 46xx
IBM USB Embedded
OCIA
Standard KBW
Universal KBW
USB expanded through Universal KBW
Wand Emulation |
|
